ASTM A182 F321h Forged Fittings Manufacturers and Suppliers:
SS 321/321H Forged Fittings offer several advantages over other types of fittings. They have excellent resistance to corrosion, even in harsh environments, and can withstand high temperatures and pressures. They are also easy to install and maintain, making them a cost-effective choice for many industrial applications.
SS 321/321H Forged Fittings are high-quality stainless steel fittings that are made from grade 321 stainless steel. SS 321 is a titanium-stabilized version of stainless steel that is designed to provide better resistance to intergranular corrosion, while SS 321H is a high carbon version of SS 321 that is suitable for high-temperature applications. These fittings are used in various industrial applications, including oil and gas, petrochemicals, power generation, and chemical processing.
ISO Approved ASTM A182 Stainless Steel 321 Forged Fittings Manufacturer In India, ASME SA182 SS 321h Threaded Fittings Dimensions & Weight Chart, Tolerances, Thickness, Cad Drawing, UNS S32100 Socket weld Fittings
ADCO Forge and Fittings is a well-established manufacturing company that specializes in the production of high-quality stainless steel 321/321h forged fittings. The company has been in business for several years and has gained a reputation for its commitment to quality and customer satisfaction.
One of the flagship products is the SS 321/321H Forged Fittings. These fittings are made using high-grade stainless steel, which is known for its excellent corrosion resistance and high strength. SS 321 is a titanium-stabilized version of stainless steel that is designed to provide better resistance to intergranular corrosion, while SS 321H is a high carbon version of SS 321 that is suitable for high-temperature applications.
We manufactures SS 321/321H Forged Fittings in various sizes and shapes, including elbows, tees, reducers, couplings, and unions. uses advanced forging techniques and state-of-the-art equipment to ensure that each fitting is manufactured to the highest standards of quality.
In addition to manufacturing SS 321/321H Forged Fittings, also offers a range of other stainless steel products, including pipes, tubes, flanges, and valves. a wide range of industries, including oil and gas, petrochemicals, power generation, and chemical processing.
One of the key factors that sets apart from its competitors is its commitment to customer service. A team of experienced professionals who work closely with customers to understand specific requirements and provide tailored solutions. This approach has helped us build long-term relationships with its customers and establish a strong reputation in the industry.
Overall, We are reliable and trustworthy manufacturer of SS 321/321H Forged Fittings and other stainless steel products. With its focus on quality and customer service, well-positioned to meet the needs of a wide range of customers in the industrial sector.
The forging process involves shaping the stainless steel using pressure and heat to create fittings with exceptional strength and durability. SS 321/321H Forged Fittings are available in a range of sizes, shapes, and configurations, including elbows, tees, reducers, couplings, and unions. The fittings are designed to provide a secure, leak-proof connection between pipes and other components in a piping system.
Overall, SS 321/321H Forged Fittings are a high-quality, reliable choice for industrial piping systems that require strong, durable, and corrosion-resistant fittings. We arr trusted manufacturer of SS 321/321H Forged Fittings, known for its commitment to quality and customer satisfaction.
We have the ready inventory of SS 321 Forged Fittings in the different size ranges of 1 Inch, 2 Inch, 4 Inch, 6 Inch SS 321h Forged Fittings.
SS 321h Forged Fittings Standard Specifications
Standards
ASTM A182/ ASME SA182, ANSI / ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799
Pressure Class
2000LBS, 3000LBS, 6000LBS, 9000LBS
Types
Socket Weld (Weld In)| Threaded / Screwed (NPT or BSPP)
Dimensions
ASME/ ANSI B16.11 | MSS-SP-79, 83, 95, 97 | BS3799 | BS4504 | BS10
Size Range (inches)
1/8″~4″ (DN6~DN100)
Forms

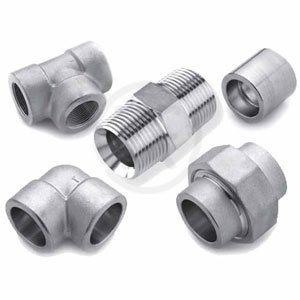

90º Elbows, 45º Elbows, Tees, Cross, Reducer, End Cap, Coupling, Boss, Union, Reducers, Adapter, Nipple, Reducer Insert
A182 GR F321 Socket weld Union, WNR 1.4541 Threaded Fittings, UNS S32109 Forged Elbow, DIN 1.4878 Threaded Adapter, End Cap, INOX 1.4541 Threaded Cross, Coupling, Reducer, AISI SS 321 Socket weld Equal Tee, F321h Bull Plug. Get best Price List.
ASTM A182 SS 321/321h Forged Fittings Types
If you are looking for 321/321h Forged Fittings types, weight chart, size chart, tolerance, and dimensions with drawings then kindly click the below-mentioned forms of pipe fittings as per your requirements to get the complete details. For the quick quote / price list click here.
Stainless Steel 321 Forged Pipe Fittings Equivalent Grades
STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
---|---|---|---|---|
SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
321h Stainless Steel Threaded Fittings Chemical Composition
Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
---|---|---|---|---|---|---|---|---|---|
SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 - 12.00 | 5(C+N) – 0.70 max |
SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
UNS S32100 Forged Elbow Mechanical Properties
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
---|---|---|---|---|
8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
ASTM A182 F321 Socket weld Fittings Standard
American Steel Forged Fittings Standard | ||||||
---|---|---|---|---|---|---|
Standard Code | ANSI ASME SA-182 | ANSI ASME B16.11 | MSS SP-79 | MSS SP-83 | MSS SP-95 | MSS SP-97 |
Standard Name | Forged fittings | Socket-welding and Threaded forged fittings | Socket-welding reducing Inserts | Class 3000 steel socket-welding and threaded unions | Swaged nipples and round plugs | SW,TH and BW ends for integrally reinforced forged branch outlet |
A182 F321h Forged Fittings Dimenssional Tolerance
"A" - Center to bottom of socket | FOR SIZES 1/8" AND 1/4" |
± 0.03" |
---|---|---|
3/8", 1/2" AND 3/4" | ± 0.06" | |
1", 1-1/4", 1-1/2" AND 2" | ± 0.08" | |
2-1/2", 3", AND 4" | ± 0.10" | |
"B" - Bore diameter of socket | FOR SIZES 1-1/2" AND SMALLER |
+ 0.020" - 0.000" |
2", 2-1/2", 3" AND 4" | + 0.025" - 0.000" |
|
"C" - Socket wall thickness | MINIMUM = 1.09 T (BUT NOT LESS THAN 5/32") T = WALL THICKNESS OF NOMINAL PIPE |
|
"D" - Bore diameter of fitting | FOR SIZES 2" AND SMALLER |
± 0.030" |
2-1/2", 3" AND 4" | ± 0.060" | |
"E" - Bottom to bottom of sockets - couplings | FOR SIZES 1/8" AND 1/4" |
± 0.06" |
3/8", 1/2" AND 3/4" | ± 0.12" | |
1", 1-1/4", 1-1/2" AND 2" | ± 0.16" | |
2-1/2", 3", AND 4" | ± 0.20" | |
"F" - Bottom of socket to opposite face - half couplings | FOR SIZES 1/8" AND 1/4" |
± 0.03" |
3/8", 1/2" AND 3/4" | ± 0.06" | |
1", 1-1/4", 1-1/2" AND 2" | ± 0.08" | |
2-1/2", 3", AND 4" | ± 0.10" | |
"G" - Welding gap | APPROXIMATELY 0.06" RECOMMENDED GAP BEFORE WELDING |
|
"H" - Minimum flat | MINIMUM FLAT = 0.75 X MINIMUM SOCKET WALL THICKNESS |
UNS S32109 Forged Fittings Applications
Oil and Gas
Nuclear Power & Defence
Petrochemical
LNG
Desalination
Mining & Minerals
