ASTM A105 Forged Fittings Manufacturers and Suppliers

ASTM A105 Carbon Steel Forged Fittings Manufacturers and Suppliers:

We specializes in the production of ASTM A105 forged fittings, which are widely used in various industrial applications. These fittings are made from high-quality carbon steel, which provides excellent strength, durability, and corrosion resistance. We are also designed to withstand high pressure and temperature, making ideal for use in demanding environments.

ISO Approved Carbon Steel ASTM A105 Forged Fittings Manufacturer In India, ASME SA105 Threaded Fittings Dimensions & Weight Chart, Tolerances, Thickness, Cad Drawing, ASTM A105 Socket weld Fittings

Standard Specifications Forged Types Chemical Mechanical Applications Tolerance

ADCO Forge and Fittings is a established and reputable manufacturer and supplier of high-quality forged fittings made from ASTM A105 material. The company has been in business for many years, and have built a strong reputation for delivering excellent products and services to customers.

The manufacturing process used by ADCO is of the highest quality. We uses state-of-the-art equipment and machinery to ensure that ASTM A105 Forged Fittings are produced to the highest standards. All of A105 Forged Fittings are rigorously tested to ensure that they meet or exceed the ASTM A105 specifications, and also inspected for quality and consistency before being shipped to customers.

In addition to manufacturing capabilities, also offers a range of services to our customers. We can provide custom machining and fabrication services to meet specific requirements, and can also offer technical support and assistance to ensure that customers get the best possible results from products.

Overall, ADCO Forge and Fittings is an excellent choice for anyone looking for high-quality ASTM A105 forged fittings. With extensive experience, state-of-the-art manufacturing capabilities, and commitment to quality and customer service, We are a trusted and reliable supplier for industrial customers across a wide range of industries.

ASTM A105 Forged Fittings Standard Specifications

Standards

ASTM A105 / ASME SA105, ANSI / ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799

Pressure Class

2000LBS, 3000LBS, 6000LBS, 9000LBS

Types

Socket Weld (Weld In)| Threaded / Screwed (NPT or BSPP)

Dimensions

ASME/ ANSI B16.11 | MSS-SP-79, 83, 95, 97 | BS3799 | BS4504 | BS10

Size Range (inches)

1/8″~4″ (DN6~DN100)

Forms

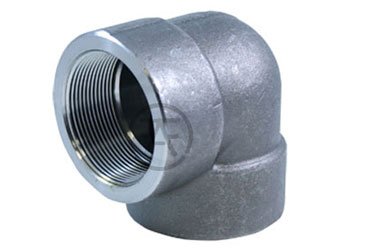

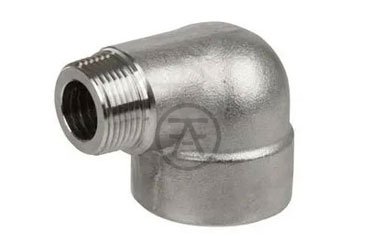

90º Elbows, 45º Elbows, Tees, Cross, Reducer, End Cap, Coupling, Boss, Union, Reducers, Adapter, Nipple, Reducer Insert

ASTM A105 Socket weld Union, Forged Elbow, Threaded Adapter, End Cap, Threaded Cross, Coupling, Reducer, Carbon Steel A105 Threaded Equal Tee, Bull Plug. Get best Price List.

ASTM A105 Forged Fittings Types

If you are looking for ASTM A105 Forged Pipe Fittings types, weight chart, size chart, tolerance, and dimensions with drawings then kindly click the below-mentioned forms of pipe fittings as per your requirements to get the complete details. For the quick quote / price list click here.

ASTM A105 Forged Fittings Chemical Composition

Grade	C	Mn	P	S	Si	Cu	Ni	Cr	Mo	V
ASTM A105	0.35 max	0.60-1.05	0.035 max	0.040 max	0.10-0.35	0.40 max	0.40 max	0.30 max	0.12 max	0.08 max

ASTM A105 Threaded Elbow Mechanical Properties

Grade	Tensile Strength min, psi [MPa]	Yield Strength min, psi [MPa]	Elongation in 2'. or 50 mm, min, %:	Rockwell of area, min, %	Brinell HBW, max
ASTM A105	70 000 [485]	36 000 [485]	30	30	187

ASTM A105 Socket Weld Fittings Dimenssional Tolerance

ASTM A105 Forged Threaded Fittings - Tolerance Chart

"A" - Center to bottom of socket	FOR SIZES 1/8" AND 1/4"	± 0.03"
	3/8", 1/2" AND 3/4"	± 0.06"
	1", 1-1/4", 1-1/2" AND 2"	± 0.08"
	2-1/2", 3", AND 4"	± 0.10"
"B" - Bore diameter of socket	FOR SIZES 1-1/2" AND SMALLER	+ 0.020" - 0.000"
"B" - Bore diameter of socket	2", 2-1/2", 3" AND 4"	+ 0.025" - 0.000"
"C" - Socket wall thickness	MINIMUM = 1.09 T (BUT NOT LESS THAN 5/32") T = WALL THICKNESS OF NOMINAL PIPE
"D" - Bore diameter of fitting	FOR SIZES 2" AND SMALLER	± 0.030"
"D" - Bore diameter of fitting	2-1/2", 3" AND 4"	± 0.060"
"E" - Bottom to bottom of sockets - couplings	FOR SIZES 1/8" AND 1/4"	± 0.06"
	3/8", 1/2" AND 3/4"	± 0.12"
	1", 1-1/4", 1-1/2" AND 2"	± 0.16"
	2-1/2", 3", AND 4"	± 0.20"
"F" - Bottom of socket to opposite face - half couplings	FOR SIZES 1/8" AND 1/4"	± 0.03"
	3/8", 1/2" AND 3/4"	± 0.06"
	1", 1-1/4", 1-1/2" AND 2"	± 0.08"
	2-1/2", 3", AND 4"	± 0.10"
"G" - Welding gap	APPROXIMATELY 0.06" RECOMMENDED GAP BEFORE WELDING
"H" - Minimum flat	MINIMUM FLAT = 0.75 X MINIMUM SOCKET WALL THICKNESS

ASTM A105 Threaded Fittings Applications

Oil and Gas

Nuclear Power & Defence

Petrochemical

LNG

Desalination

Mining & Minerals
