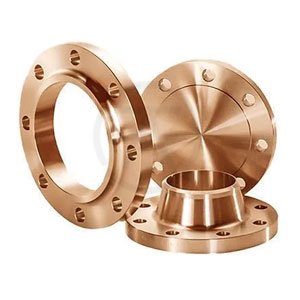

ASTM B151 Cupro Nickel 90/10 Flange Manufacturers and Suppliers:
Copper nickel 90/10 is a type of alloy that is used extensively in marine applications due to its excellent resistance to corrosion and erosion. We understands the unique needs of the marine industry, and have developed a range of copper nickel 90/10 flanges that are specifically designed to meet the needs of marine applications.
Cu-Ni 90/10 flanges are manufactured using the highest quality materials and the latest manufacturing techniques to ensure that meet the strictest quality standards. copper nickel 90/10 flanges are available in a variety of sizes and configurations to meet the specific needs of customers.
ISO Approved ASTM B151 Copper Nickel 90/10 Flanges Manufacturer In India, ASME SB151 Copper Alloy 90/10 Flanges Dimensions & Weight Chart, Tolerances, Thickness, Cad Drawing, UNS C70600 Pipe Flange
ADCO Forge and Fittings is a trustworthy manufacturer of high-quality copper nickel 90/10 flanges. We have built a solid reputation in the industry for their expertise and commitment to quality.
One of the key advantages of working with us is their expertise in custom manufacturing. We can work with our customers to design and manufacture Copper nickel 90/10 Flanges that are tailored to specific needs. This level of customization ensures that our customers get the exact product they need for application.
In addition to our expertise in manufacturing copper nickel 90/10 flanges, also offers a range of other products and services. We specialize in the manufacture of a wide range of forgings and fittings, and also offer machining, heat treating, and testing services.
Overall, We are reliable and experienced manufacturer of copper nickel 90/10 flanges. Our commitment to quality and customer service make an excellent choice for any company looking for high-quality marine flanges.
We have the ready inventory of Copper Nickel 90/10 Flanges in the different size ranges of 1 Inch, 2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch Cu-Ni 90/10 Flanges.
Copper Nickel 90/10 Flanges Standard Specifications
Standards
ASTM B151 / ASME SB151, ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Din
DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN2638, DIN2673
Class
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40.
JIS/UNI/BS
5K, 10K, 16K, 20K, 30K, 40K, 63K/ 6Bar 10Bar 16Bar 25Bar 40Bar/BS4504 , BS4504, BS1560, BS10
Dimensions
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size Range (inches)
From ½” (15 NB) to 48″ (1200NB)
Forms
SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle
Connection Type
RTJ, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove
Face Type
Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
ASTM B151 Copper Nickel 90/10 Slip On Flange, WNR 2.0872 Weld Neck Flange, UNS C70600 Forged Flanges, DIN 2.0872 Blind Flange, RTJ Flange, INOX 2.0872 Plate Flange, SWRF Flange, WNRF Flange, Orifice Flange, Cupro Nickel 90/10 Lap Joint Flange. Get best Price List.
ASTM B151 Copper Nickel 90/10 Flanges Types
If you are looking for Copper Alloy 90/10 Flanges types, weight chart, size chart, tolerance, and dimensions with drawings then kindly click the below-mentioned forms of pipe fittings as per your requirements to get the complete details. For the quick quote / price list click here.
Copper Nickel 90/10 Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Copper Nickel 90/10 | C70600 | 2.0872 |
Copper Alloy 90/10 Flanges Chemical Composition
| Grade | Cu | Pb | Mn | Ni | Zn | Fe |
|---|---|---|---|---|---|---|
| Cu-Ni 90-10 | 88.6 min | .05 max | 1.0 max | 9-11 max | 1 max | 1.8 max |
ASTM B151 Cu-Ni 90/10 Slip On Flange Mechanical Properties
| Element | Melting Point | Density | Yield Strength (0.2%Offset) | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|---|
| Copper Nickel 90-10 | 2260 F | 0.323 lb/in3 at 68 F | 20000 psi | 50000 psi | 20000 psi | 30 % |
Copper Alloy 90/10 Pipe Flanges Physical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.94 g/cm3 | 0.323 lb/in3 |
Cupro Nickel 90/10 Threaded Flange Weight Chart
| Flange Weights by Pressure Class and Size | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Size | 150 # | 300 # | 600 # | 900 # | 1500 # | 2500 # | ||||||||||||
| WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | |
| 1/2″ | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 2 | SEE 1500 # WEIGHTS | 5 | 4 | 4 | 7 | 7 | 7 | ||
| 3/4″ | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 3 | 3 | SEE 1500 # WEIGHTS | 6 | 5 | 6 | 8 | 8 | 8 | ||
| 1″ | 3 | 2 | 2 | 4 | 3 | 3 | 4 | 4 | 4 | SEE 1500 # WEIGHTS | 9 | 8 | 8 | 12 | 11 | 11 | ||
| 1 1/2″ | 4 | 3 | 3 | 7 | 6 | 6 | 8 | 7 | 8 | SEE 1500 # WEIGHTS | 13 | 12 | 13 | 25 | 22 | 23 | ||
| 2″ | 6 | 5 | 5 | 9 | 7 | 8 | 12 | 9 | 10 | SEE 1500 # WEIGHTS | 25 | 25 | 25 | 42 | 37 | 39 | ||
| 2 1/2″ | 8 | 7 | 7 | 12 | 10 | 12 | 18 | 13 | 15 | SEE 1500 # WEIGHTS | 36 | 36 | 35 | 52 | 55 | 56 | ||
| 3″ | 10 | 8 | 9 | 15 | 13 | 16 | 23 | 16 | 20 | 31 | 26 | 29 | 48 | 48 | 48 | 94 | 83 | 86 |
| 4″ | 15 | 13 | 17 | 25 | 22 | 27 | 42 | 37 | 41 | 53 | 53 | 54 | 73 | 73 | 73 | 145 | 125 | 130 |
| 5″ | 19 | 15 | 20 | 32 | 28 | 35 | 68 | 63 | 68 | 86 | 83 | 87 | 130 | 130 | 140 | 245 | 210 | 225 |
| 6″ | 24 | 19 | 26 | 42 | 39 | 50 | 81 | 80 | 86 | 110 | 110 | 115 | 165 | 165 | 160 | 380 | 325 | 345 |
| 8″ | 39 | 30 | 45 | 67 | 58 | 81 | 120 | 115 | 140 | 175 | 170 | 200 | 275 | 260 | 300 | 580 | 485 | 530 |
| 10″ | 52 | 43 | 70 | 91 | 81 | 124 | 190 | 170 | 230 | 260 | 245 | 290 | 455 | 435 | 510 | 1075 | 930 | 1025 |
| 12″ | 80 | 64 | 110 | 140 | 115 | 185 | 225 | 200 | 295 | 325 | 325 | 415 | 690 | 580 | 690 | 1525 | 1100 | 1300 |
| 14″ | 110 | 90 | 140 | 180 | 165 | 250 | 280 | 230 | 355 | 400 | 400 | 520 | 940 | NA | 975 | NA | NA | NA |
| 16″ | 140 | 98 | 180 | 250 | 190 | 295 | 390 | 330 | 495 | 495 | 425 | 600 | 1250 | NA | 1300 | NA | NA | NA |
| 18″ | 150 | 130 | 220 | 320 | 250 | 395 | 475 | 400 | 630 | 680 | 600 | 850 | 1625 | NA | 1750 | NA | NA | NA |
| 20″ | 180 | 165 | 285 | 400 | 315 | 505 | 590 | 510 | 810 | 830 | 730 | 1075 | 2050 | NA | 2225 | NA | NA | NA |
| 22″ | 225 | 185 | 355 | 465 | 370 | 640 | 720 | 590 | 1000 | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| 24″ | 260 | 220 | 430 | 580 | 475 | 790 | 830 | 730 | 1250 | 1500 | 1400 | 2025 | 3325 | NA | 3625 | NA | NA | NA |
ASTM B151 Cu-Ni 90/10 Flanges Dimenssional Tolerance
| WELDING NECK FLANGES | ||||
|---|---|---|---|---|
| 0 | Outside Diameter | When 0 is 24″or less | ±0.06″ | ±1.6 mm |
| When O is over 24” | ±0.12″ | ±3.2 mm | ||
| R | Diameter of Contact Face | 0.06” (1.6 mm) raised face | ±0.03″ | ±0.8 mm |
| 0.25″ (6.4 mm) raised face | ±0.02″ | ±0.5 mm | ||
| A | Diameter of Hub at Point of Welding | NPS 5 and smaller | +0.09″, -0.03″ | +2.4 mm, -0.8 mm |
| NPS 6 and larger | +0.16″, -0.03″ | +4.0 mm, -0.8 mm | ||
| B | Inside Diameter | NPS 10 and smaller | ±0.03″ | ±0.8 mm |
| NPS 12 to 18, inclusive | ±0.06″ | ±1.6 mm | ||
| NPS 20 and larger | +0.12″, -0.06” | +3.2 mm, -1.6 mm | ||
| X | Diameter of Hub at Base | When Hub Base is 24″ or less | ±0.06″ | ±1.6 mm |
| When Hub Base is over 24″ | ±0.12″ | ±3.2 mm | ||
| c | Thickness | NPS 18 and smaller | +0.12″, -0.00″ | +3.2 mm, -0.0 mm |
| NPS 20 and larger | +0.19″, -0.00″ | +4.8 mm, -0.0 mm | ||
| Drilling | Bolt Circle Diameter | ±0.06″ | ±1.6 mm | |
| Bolt Hole Spacing | ±0.03″ | ±0.8 mm | ||
| Eccentricity of Bolt Circle and Facing with Respect to Bore | NPS 21/2 and smaller | ±0.03″ | ±0.8 mm | |
| NPS 3 and larger | ±0.06″ | ±1.6 mm | ||
| Length Through Hub | NPS 10 and smaller | ±0.06″ | ±1.6 mm | |
| NPS 12 and larger | ±0.12″ | ±3.2 mm | ||
| SLIP-ON, LAP JOINT, SOCKET WELDING, THREADED AND BLIND FLANGES | ||||
| O | Outside Diameter | When O is 24″ or less When O is over 24″ |
±0.06″ ±0.12″ | ±1.6 mm ±3.2 mm |
| R | Diameter of Contact Face | 0.06″ (1.6 mm) raised face 0.25″ (6.4 mm) raised face | ±0.03″ ±0.02″ | ±0.8 mm ±0.5 mm |
| B | Inside Diameter at Face of Socket Welding Flanges
Inside Diameter of Slip-On, Lap Joint, and Socket Welding |
NPS 10 and smaller NPS 12 through 18, inclusive NPS 20 and larger |
±0.03″ ±0.06″ +0.12″, -0.06″ | ±0.8 mm ±1.6 mm +3.2 mm, -1.6 mm |
| NPS 10 and smaller NPS 12 and larger |
+0.03″, -0.00″ +0.06″, -0.00″ | +0.8 mm, -0.0 +1.6 mm, -0.0 mm |
||
| Q | Counterbore, Threaded Flanges | NPS 10 and smaller NPS 12 and larger |
+0.03″, -0.00″ +0.06″, -0.00″ | +0.8 mm, -0.0 + 1.6 mm, -0.0 mm |
| X | Diameter of Hub at Base | NPS 12 and smaller NPS 14 and larger |
+0.09″, -0.06″ ±0.12″ | +2.4 mm, -1.6 ±3.2 mm |
| c | Thickness | NPS 18 and smaller NPS 20 and larger |
+0.12″, -0.00″ +0.19″, -0.00″ | +3.2 mm, -0.0 +4.8 mm, -0.0 mm |
| Drilling | Bolt Circle Diameter Bolt Hole Spacing | ±0.06″ ±0.03″ | ±1.6 mm ±0.8 mm |
|
| Eccentricity of Bolt Circle and Facing with Respect to Bore | NPS 2V2 and smaller NPS 3 and larger |
±0.03″ ±0.06″ | ±0.8 mm ±1.6 mm |
|
| Overall Length Through Hub | NPS 18 and smaller NPS 20 and larger |
+0.12”, -0.03” +0.19”, -0.03” |
+3.2 mm, -0.8 mm +4.8 mm, -1.6 mm |
|
UNS C70600 Flanges Applications
Oil and Gas
Nuclear Power & Defence
Petrochemical
LNG
Desalination
Mining & Minerals
