ASME B16.47 Flat Face Flanges Manufacturers and Suppliers :

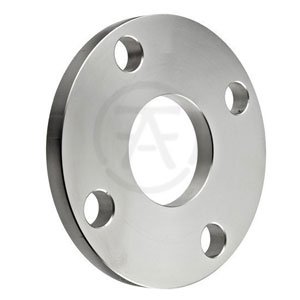

Flat Face Flanges are a type of flange that have a flat surface on the face of the flange. This flat surface makes contact with the mating flange face, which is also flat, creating a seal between the two flanges.
Flat Face Flanges are commonly used in applications where there is no need for the flange to align or center the pipes or equipment being connected. Flat Face Flanges are also used in applications where the pressure or temperature requirements are not too high.
ISO Approved ANSI B16.5 Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500 Flat Face Flanges Manufacturer In India, BS10 Flat Face Flange, AWWA C207 Flat Face Flange, EN 1092-1 Flat Face Flange, Series A and Series B Flat Face Flange Dimensions Chart, Tolerances, Weight Chart, Thickness Chart, Cad Drawing FF Flange
ADCO Forge and Fittings is a india’s most trusted manufacturer of industrial flanges, including flat face flanges. We known for its high-quality products and reliable customer service. We produces flat face flanges in a wide range of sizes, materials, and pressure ratings to meet the needs of various industries, also offer custom flange solutions for specific applications. With a focus on precision manufacturing and attention to detail, established itself as a trusted supplier of industrial flanges, including flat face flanges.
Flat Face Flanges are available in a variety of sizes, materials, and pressure ratings to accommodate different applications. Flat Face Flanges made from materials such as carbon steel, stainless steel, and aluminum, among others. Flat face flanges are commonly used in industries such as petrochemical, oil and gas, and water treatment, among others.
It is important to note that flat face flanges require the use of a gasket to create a seal between the flanges. The gasket is placed between the flat faces of the flanges and is compressed when the bolts are tightened, creating a tight seal. The type of gasket used will depend on the specific application and the materials being used for the flanges.
We have the ready inventory of Flat Face Flanges in the different size ranges of 10 Inch, 3 Inch FF Flange.
Flat Face Flanges Standard Specifications
Standards
ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Form
SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle
BS/JIS
BS4504 , BS4504, BS1560, BS10,5K, 10K, 16K, 20K, 30K, 40K, 63K
Face Type
Flat Face (FF)
Dimensions
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size Range (inches)
From ½” (15 NB) to 48″ (1200NB)
Class
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40.
Connection Type
RTJ, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove
Flat Face Flanges in Stainless Steel 304/304L, SS 316/316L, SS 904L, Alloy 20, Carbon Steel, Nickel 200, Monel, Inconel, Hastelloy C22, Duplex Steel 2205, Titanium, Copper Nickel, SMO 254, Aluminum, Galvanized, MS Flat Face Flange. Get best Price List.
ASME B16.47 Flanges Types
If you are looking for ASME B16.47 Pipe Flanges types, weight chart, size chart, tolerance, and dimensions with drawings then kindly click the below-mentioned forms of Flanges as per your requirements to get the complete details. For the quick quote / price list click here.
ASME B16.5 Flat Face Flanges Material Grades
| Stainless Steel Flat Face Flange: | ASTM A182 F304, F304H, F304L, F304N, F304LN, F309H, F310, F310H, F310MoLN, F316, F316H, F316L, F316N, F316LN, F316Ti, F317, F317L, F321, F321H, F347, F347H, F348, F348H, 904L |
|---|---|
| Carbon Steel Flat Face Flange: | ASTM A105 A53, A106, API 5L |
| Low Temperature Carbon Steel Flat Face Flange: | ASTM A350 LF1, LF2, LF3 |
| High Yield Carbon Steel Flat Face Flange: | ASTM A694 F42, F52, F60, F65 |
| Alloy Steel Flat Face Flange: | ASTM A182 F5, F9, F11, F22, F1, F5/F5a, F91 |
| Duplex & Super Duplex Flat Face Flange: | ASTM A182, ASME SA182 Duplex 2205 (UNS S31803 – UNS S32205), Super Duplex 2507 (UNS S32750 – UNS S32760) |
| Nickel Alloy Flat Face Flange: | ASTM / ASME SB B160 / B166 / B564 / B425/ B564 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C276 ), Cupro Nickel 90/10 ( C70600, 2.0872 ), 70/30 ( C71500, 2.0882) |
| Other Steel Flat Face Flange: | ASTM B381 Titanium Grade 2 ( R50400, 3.7035 ), Titanium Grade 5 ( N56400, 3.7165 ), ASTM B462 Alloy 20, ASTM A182 SMO 254/AL-6XN ( S31254, 1.4547 ), AISI 4130 ( G41300, 1.7218 ) |
ANSI B16.5 Flat Face Flanges Dimensions
ASME B16.5 Flat Face Flange - Dimensions & Weight Chart
Dimensions & Weight of Flat Face Flanges as per ASME B16.5
| NPS | Dia. of Pipe | Flange Inner Dia. | Number of holes | Flange Diameter | Flange Thickness | Bolt Circle Dia | Bolt Holes Dia | Weight (Approx) | |
|---|---|---|---|---|---|---|---|---|---|
| DN | ISO | DIN | D5 | BN | D | b | K | d2 | KG/PCS |
| 10 | – | 14 | 14.5 | 4 | 90 | 16 | 60 | 14 | 0.7 |
| 17.2 | – | 17.7 | 4 | 90 | 16 | 60 | 14 | 0.69 | |
| 15 | – | 20 | 21 | 4 | 95 | 16 | 65 | 14 | 0.77 |
| 21.3 | – | 22 | 4 | 95 | 16 | 65 | 14 | 0.77 | |
| 20 | – | 25 | 26 | 4 | 105 | 18 | 75 | 14 | 1.06 |
| 26.9 | – | 27.6 | 4 | 105 | 18 | 75 | 14 | 1.05 | |
| 25 | – | 30 | 31 | 4 | 115 | 18 | 85 | 14 | 1.27 |
| 33.7 | – | 34.4 | 4 | 115 | 18 | 85 | 14 | 1.25 | |
| 32 | – | 38 | 39 | 4 | 140 | 18 | 100 | 18 | 1.86 |
| 42.4 | – | 43.1 | 4 | 140 | 18 | 100 | 18 | 1.83 | |
| 40 | – | 44.5 | 45.5 | 4 | 150 | 18 | 110 | 18 | 2.12 |
| 48.3 | – | 49 | 4 | 150 | 18 | 110 | 18 | 2.09 | |
| 50 | – | 57 | 58.1 | 4 | 165 | 20 | 125 | 18 | 2.78 |
| 60.3 | – | 61.1 | 4 | 165 | 20 | 125 | 18 | 2.74 | |
| 65 | 76.1 | – | 77.1 | 8 | 185 | 22 | 145 | 18 | 3.48 |
| 80 | 88.9 | – | 90.3 | 8 | 200 | 24 | 160 | 18 | 4.33 |
| 100 | – | 108 | 109.6 | 8 | 235 | 24 | 190 | 22 | 5.82 |
| 114.3 | – | 115.9 | 8 | 235 | 24 | 190 | 22 | 5.61 | |
| 125 | – | 133 | 134.8 | 8 | 270 | 26 | 220 | 26 | 7.91 |
| 139.7 | – | 141.6 | 8 | 270 | 26 | 220 | 26 | 7.6 | |
| 150 | – | 159 | 161.1 | 8 | 300 | 28 | 250 | 26 | 10.12 |
| 168.3 | – | 170.5 | 8 | 300 | 28 | 250 | 26 | 9.58 | |
| 175 | 193.7 | – | 196.1 | 12 | 350 | 32 | 295 | 30 | 14.45 |
| 200 | 219.1 | – | 221.8 | 12 | 375 | 34 | 320 | 30 | 16.9 |
| 250 | – | 267 | 270.2 | 12 | 450 | 38 | 385 | 33 | 27.28 |
| 273 | – | 276.2 | 12 | 450 | 38 | 385 | 33 | 26.51 | |
| 300 | 323.9 | – | 327.6 | 16 | 515 | 42 | 450 | 33 | 36.38 |
| 350 | 355.6 | – | 359.7 | 16 | 580 | 46 | 510 | 36 | 52.83 |
| – | 368 | 372.2 | 16 | 580 | 46 | 510 | 36 | 50.24 | |
| 400 | 406.4 | – | 411 | 16 | 660 | 50 | 585 | 39 | 74.71 |
| – | 419 | 423.7 | 16 | 660 | 50 | 585 | 39 | 71.44 | |
| 500 | 508 | – | 513.6 | 20 | 755 | 52 | 670 | 42 | 86.87 |
| 600 | 610 | – | 616.5 | 20 | 890 | 54 | 795 | 48 | 121.84 |
| 700 | 711 | – | 716 | 24 | 995 | 58 | 900 | 48 | 150.93 |
| 800 | 813 | – | 818 | 24 | 1140 | 64 | 1030 | 56 | 219.08 |
| 900 | 914 | – | 920 | 28 | 1250 | 70 | 1140 | 56 | 271.16 |
| 1000 | 1016 | – | 1022 | 28 | 1360 | 78 | 1250 | 56 | 344.95 |
