ASTM B366 Inconel Alloy 600 Pipe Fittings Manufacturers and Suppliers:
Inconel 600 is a nickel-chromium alloy that offers excellent resistance to high-temperature oxidation and corrosion, making it ideal for use in high-temperature applications.

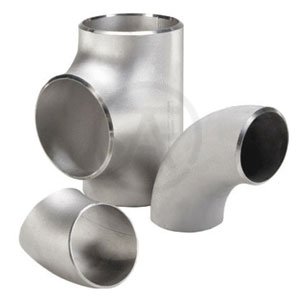

We offer a wide range of Inconel 600 pipe fittings, including elbows, tees, reducers, caps, and stub ends. These fittings come in various sizes, ranging from 1/8″ to 48″ in diameter, and are available in different wall thicknesses to meet the specific needs of different industries.
ISO Approved ASTM B366 Inconel 600 Pipe Fittings Manufacturer In India, ASME SB366 Alloy 600 Buttweld Fittings Dimensions & Weight Chart, Tolerances, Thickness, Cad Drawing, UNS N06600 Pipe Elbow
ADCO Forge and Fittings is a renowned company that specializes in the manufacturing of high-quality Inconel 600 pipe fittings.
The state-of-the-art manufacturing facility equipped with modern machinery and equipment. We have a team of highly skilled and experienced professionals who are dedicated to producing top-quality products. The production process is carried out under strict quality control measures to ensure that each fitting meets the highest standards of quality and reliability.
One of the key benefits of using Inconel 600 pipe fittings is excellent resistance to high-temperature oxidation and corrosion. This makes ideal for use in a range of applications, including chemical processing, petrochemical, power generation, and aerospace industries.
In addition to exceptional quality, also offer competitive pricing, timely delivery, and excellent customer service. We are committed to providing our customers with the best possible solutions to pipe fitting needs and ensuring complete customer satisfaction.
In conclusion, ADCO Forge and Fittings is a reputable manufacturer of high-quality Inconel 600 pipe fittings. Our commitment to quality, reliability, and customer satisfaction makes a top choice for industries looking for durable and high-performance pipe fittings.
We have the ready inventory of Inconel 600 Buttweld Fittings in the different size ranges of 1 Inch, 2 Inch, 3 Inch, 4 Inch, 5 Inch, 6 Inch, 7 Inch, 8 Inch Alloy 600 Pipe Fittings.
Inconel 600 Pipe Fittings Standard Specifications
Standards
ASTM B366/ ASME SB366, ANSI / ASME B16.9, MSS SP-43, API 590-605
Thickness
SCH10, SCH 20, SCH30, STD SCH40, SCH80, SCH60, XS, SCH100, SCH 120, SCH140, SCH 160, XXS available with NACE MR 01-75
Types
Welded | Seamless | Fabricated
Dimensions
ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10
Size Range (inches)
Seamless Fitting ( 1/2″～24″)
ERW/Fabricated/Welded Fitting (1/2″～48″)
Forms
90º Elbows, 45º Elbows, Tees, Cross, Reducer, End Cap, Stub End, Pipe Bend
UNS N06600 Buttweld Elbow, DIN 2.4816 Pipe Bend, End Cap, INOX 2.4816 Buttweld Cross, Long Stub End, Reducer, B366 Alloy 600 Union, WNR 2.4816 Pipe Nipple, JIS NCF 600 Equal Tee, Inconel 600 Collar Pipe Fittings, Pipe Cap. Get best Price List.
ASTM B366 Inconel 600 Buttweld Fittings Types
If you are looking for Alloy 600 Pipe Fittings types, weight chart, size chart, tolerance, and dimensions with drawings then kindly click the below-mentioned forms of pipe fittings as per your requirements to get the complete details. For the quick quote / price list click here.
Inconel 600 Buttweld Pipe Fittings Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST | OR |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | N06600 | 2.4816 | NC15FE11M | NiCr15Fe | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | ЭИ868 |
Alloy 600 Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| 600 | 0.15 | 1.00 | 0.50 | 0.015 | 0.50 | 6.00 - 10.0 | 72.00 | 14.00 - 17.00 |
Inconel Alloy 600 Butt weld Reducer Mechanical Properties
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|---|
| 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi - 45,000 , MPa - 310 | Psi - 95,000 , MPa -655 | 40 % |
Inconel Alloy 600 Butt weld Elbow Physical Properties
| Density | Melting Range | Specific Heat | Curie Temperature | Electrical Resistivity | |||||
|---|---|---|---|---|---|---|---|---|---|
| 0.306 | 8.47 | 2470-2575 | 1354-1413 | 0.106 | 444.00 | -192 | -124 | 620 | 1.03 |
| lb/in3 | Mg/m3 | °F | °C | Btu/lb-°F | J/kg-°C | °F | °C | mil/ft | μΩ-m |
Inconel Alloy 600 Pipe Fittings Trade Names
| Name | Alloy type | Alternative Trade Names |
|---|---|---|
| Inconel 600® | Nickel-Chromium-Iron | Nickelvac® 600, Ferrochronin® 600 |
Inconel 600 Butt weld Pipe Fittings Tolerance
| Nominal Pipe Size (NPS) | 90° & 45° Long Radius Elbows 90° Short Radius Elbows and Tees |
Reducers | Caps | Lap Joint Stub End | 180° Returns | All Fittings | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Centre-to-End Dimension ± A, B |
Overall Length ± A |
Overall Length ± A |
OD of Lap B |
Fillet Radius of Lap B |
Centre-to-Centre Dimension ± B (=2 x A) |
Back-to-Face Dimension ± C |
OD at Bevel | ID at Bevel ± | Wall thickness | ||||||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
| ½ to 2½ | 0.06 | 2 | 0.06 | 2 | 0.12 | 3 | +0 | +0, -1 | +0 | +0, -1 | 0.25 | 6 | 0.25 | 6 | +0.06, -0.03 | +1.6, -0.8 | 0.03 | 0.8 | Not less than 87.5% of nominal wall thickness |
| 3 to 3½ | 0.06 | 2 | 0.06 | 2 | 0.12 | 3 | +0, -0.03 | +0, -1 | +0, -0.03 | +0, -1 | 0.25 | 6 | 0.25 | 6 | ±0.6 | ±1.6 | 0.06 | 1.6 | |
| 4 | 0.06 | 2 | 0.06 | 2 | 0.12 | 3 | +0, -0.03 | +0, -1 | +0, -0.06 | +0, -2 | 0.25 | 6 | 0.25 | 6 | ±0.6 | ±1.6 | 0.06 | 1.6 | |
| 5 to 6 | 0.06 | 2 | 0.06 | 2 | 0.25 | 6 | +0, -0.03 | +0, -1 | +0, -0.06 | +0, -2 | 0.25 | 6 | 0.25 | 6 | +0.09, -0.06 | +2.4, -1.6 | 0.06 | 1.6 | |
| 8 | 0.06 | 2 | 0.06 | 2 | 0.25 | 6 | +0, -0.03 | +0, -1 | +0, -0.06 | +0, -2 | 0.25 | 6 | 0.25 | 6 | +0.09, -0.06 | +2.4, -1.6 | 0.06 | 1.6 | |
| 10 | 0.09 | 2 | 0.09 | 2 | 0.25 | 6 | +0, -0.06 | +0, -2 | +0, -0.06 | +0, -2 | 0.38 | 10 | 0.25 | 6 | +0.16, -0.12 | +4.0, -3.2 | 0.12 | 3.2 | |
| 12 to 18 | 0.09 | 2 | 0.09 | 2 | 0.25 | 6 | +0, -0.06 | +0, -2 | +0, -0.06 | +0, -2 | 0.38 | 10 | 0.25 | 6 | +0.16, -0.12 | +4.0, -3.2 | 0.12 | 3.2 | |
| 20 to 24 | 0.09 | 2 | 0.09 | 2 | 0.25 | 6 | +0, -0.06 | +0, -2 | +0, -0.06 | +0, -2 | 0.38 | 10 | 0.25 | 6 | +0.25, -0.19 | +6.4, -4.8 | 0.19 | 4.8 | |
| 26 to 30 | 0.12 | 3 | 0.19 | 5 | 0.38 | 10 | – | – | – | – | – | – | – | – | +0.25, -0.19 | +6.4, -4.8 | 0.19 | 4.8 | |
| 32 to 48 | 0.19 | 5 | 0.19 | 5 | 0.38 | 10 | – | – | – | – | – | – | – | – | +0.25, -0.19 | +6.4, -4.8 | 0.19 | 4.8 | |
B366 Inconel 600 Pipe Fittings Alignment Tolerances
| Nominal Pipe Size (NPS) | Off Plane Tolerances, ± A |
Off Angle Tolerances, ± B |
Alignment of Ends, ± C |
|||
|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | |
| ½ to 4 | 0.06 | 2 | 0.03 | 1 | 0.03 | 1 |
| 5 to 8 | 0.12 | 4 | 0.06 | 2 | 0.03 | 1 |
| 10 to 12 | 0.19 | 5 | 0.09 | 2 | 0.06 | 2 |
| 14 to 16 | 0.25 | 6 | 0.09 | 3 | 0.06 | 2 |
| 18 to 24 | 0.38 | 10 | 0.12 | 4 | 0.06 | 2 |
| 26 to 30 | 0.38 | 10 | 0.19 | 5 | – | – |
| 32 to 42 | 0.50 | 13 | 0.19 | 5 | – | – |
| 44 to 48 | 0.75 | 19 | 0.19 | 5 | – | – |
UNS N06600 Pipe Fittings Applications
Oil and Gas
Nuclear Power & Defence
Petrochemical
LNG
Desalination
Mining & Minerals
