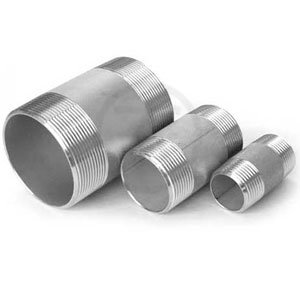

Nickel Alloy Nipples Manufacturers and Suppliers:

High nickel alloy nipples are specialized pipe fittings that are made from materials with high nickel content, typically between 20% and 70%. These High nickel alloy Nipples are known for their excellent resistance to corrosion and high-temperature environments, making ideal for use in a variety of industrial applications, such as chemical processing, oil and gas, and power generation.

ISO Approved Hastelloy Hex Nipple Manufacturer In India, Inconel Threaded Nipples, Monel Swage Nipple, Copper Nickel Nipple, Inconel 600 Nipples, Hastelloy C22 Socket Weld Nipple Dimensions Chart, Tolerances, Weight Chart

Standard Specifications Dimensions and Weights Chart Applications

High nickel alloy nipples are typically manufactured to specific dimensions and tolerances to ensure a proper fit and seal with other pipe fittings. High nickel alloy nipples can come in various shapes, sizes, and configurations, such as threaded or welded, and can be customized to meet specific requirements.

When selecting high nickel alloy nipples, it is important to consider factors such as the type of alloy, the operating environment, and the application requirements to ensure the best possible performance and durability. Consulting with a knowledgeable supplier or engineer can help ensure the right materials and specifications are chosen for the job.

We have the ready inventory of High Nickel Alloys Nipples in the different size ranges of 1 Inch, 1/2 Npt, 1 1/2 Npt, 1 Inch, 2 Inch, 3 Inch, 4 Inch, 5/8 Npt, 6 Inch, 7/8 Npt, 7/16 Npt, 8 Inch, 9 Inch, 8mm, 9mm Hex Nipple / Swage Nipple .

Nickel Alloys 200/201 Hex Nipple Standard Specifications

Standards

ASTM A182/ ASME SA182, ANSI / ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799

Pressure Class

2000LBS, 3000LBS, 6000LBS, 9000LBS

Types

Socket Weld (Weld In)| Threaded / Screwed (NPT or BSPP)

Dimensions

ASME/ ANSI B16.11 | MSS-SP-79, 83, 95, 97 | BS3799 | BS4504 | BS10

Size Range (inches)

1/8″~4″ (DN6~DN100)

Forms

Hex Nipple / Swage Nipple

ASTM A182 Nipples, Inconel 625 Hex Nipple, Hastelloy C276 Swage Nipple, Incoloy 800 Nipples, Monel 400 Nipple, Incoloy 800 Nipple, Incoloy 825 Threaded Nipple, Alloy 20 Socket Weld Nipple, SMO 254 Nipple, Titanium Alloy Nipples. Get best Price List.

High Nickel Alloy Nipples Dimensions and Weights Chart

High Nickel Alloy Hex Nipple - Threaded - Dimensions

ASME B16.11 Hex Nipple - Threaded - Dimensions

Dimensions of High Nickel Alloy Threaded Hex Nipple (NPS 1/2 to 4)

NPS	Min Length E	Min Hex Height J	Nominal F
1/2	14	8	22
3/4	16	10	27
1	19	10	35
1.1/4	21	14	44.5
1.1/2	21	16	51
2	22	18	63.5
2.1/2	27	19	76
3	28	21	89
4	32	25	117.5

ASME B16.11 Reducing Nipple - Threaded - Dimensions

Dimensions of High Nickel Alloy Threaded Reducing Nipple (NPS 1/2 to 4)

Standard Pattern
SIZE		A		B		L		W
SIZE		mm	in	mm	in	mm	in	mm	in
1/4″	1/8″	13	0.51	6	0.24	31	1.22	15.1	0.59
3/8″	1/8″	14	0.55	7	0.28	34	1.34	18.6	0.73
3/8″	1/4″	14	0.55	7	0.28	34	1.34	18.6	0.73
1/2″	1/8″	16.5	0.65	8	0.31	36.5	1.44	23	0.91
	1/4″	16.5	0.65	8	0.31	36.5	1.44	23	0.91
	3/8″	16.5	0.65	8	0.31	36.5	1.44	23	0.91
3/4″	1/8″	16	0.63	8	0.31	40	1.57	29	1.14
	1/4″	16	0.63	8	0.31	40	1.57	29	1.14
	3/8″	17	0.67	8	0.31	41	1.61	28.5	1.12
	1/2″	17	0.67	8	0.31	41.5	1.63	28.5	1.12
1″	1/4″	20	0.79	9	0.35	41	1.61	35.4	1.39
	3/8″	20	0.79	9	0.35	42.5	1.67	35.4	1.39
	1/2″	20	0.79	9	0.35	45	1.77	35.4	1.39
	3/4″	20	0.79	9	0.35	45	1.77	35.4	1.39
1-1/4″	1/4″	21	0.83	10	0.39	42	1.65	44.5	1.75
	3/8″	21	0.83	10	0.39	47	1.85	44.5	1.75
	1/2″	21	0.83	10	0.39	49	1.93	44.5	1.75
	3/4″	21	0.83	10	0.39	49	1.93	44.5	1.75
	1″	22	0.87	10	0.39	52	2.05	44.5	1.75
1-1/2″	1/4″	20	0.79	10.5	0.41	42.5	1.65	51	2.01
	3/8″	21	0.83	10	0.39	47	1.85	50	1.97
	1/2″	21	0.83	10	0.39	49	1.93	50	1.97
	3/4″	21	0.83	10	0.39	49	1.93	50	1.97
	1″	21.5	0.85	11	0.39	52.5	2.07	50	1.97
	1-1/4″	22	0.87	11	0.43	55	2.17	51	2.01
2″	3/8″	23	0.91	11	0.43	52	2.05	61.5	2.42
	1/2″	23	0.91	11	0.43	52	2.05	61.5	2.42
	3/4″	23	0.91	11	0.43	41.5	1.63	61.5	2.42
	1″	23	0.91	11	0.43	53.5	2.11	61.5	2.42
	1-1/4″	23	0.91	11	0.43	56	2.2	61.5	2.42
	1-1/2″	23	0.91	11	0.43	55.5	2.19	61.5	2.42
2-1/2″	3/4″	27.5	1.08	13	0.51	64	2.52	78	3.07
	1″	27.5	1.08	13	0.51	63.5	2.5	78	3.07
	1-1/4″	27.5	1.08	13	0.51	63.5	2.5	78	3.07
	1-1/2″	27.5	1.08	13	0.51	63.5	2.5	78	3.07
	2″	27.5	1.08	13	0.51	65.5	2.58	78	3.07
3″	1-1/2″	28	1.1	15	0.59	68	2.68	92	3.62
	2″	28	1.1	15	0.59	68.5	2.7	93	3.66
	2-1/2″	28.5	1.12	15	0.59	71	2.8	92	3.62
4″	2″	30	1.18	15	0.59	75	2.95	117	4.61
	2-1/2″	30	1.18	15	0.59	75	2.95	117	4.61
	3″	30	1.18	15	0.59	75	2.95	117	4.61
Tolerance: +0.5mm(1/8″~2″)
+0.8mm(2-1/2″~4″)

Economic Pattern
SIZE		A		B		L		W
SIZE		mm	in	mm	in	mm	in	mm	in
1/4″	1/8″	11	0.43	6	0.24	29	1.14	15	0.59
3/8″	1/8″	12	0.47	7	0.28	31	1.22	18	0.71
3/8″	1/4″	12	0.47	7	0.28	32	1.26	18	0.71
1/2″	1/8″	14	0.55	7	0.28	34	1.34	23	0.91
	1/4″	14	0.55	7	0.28	35	1.38	23	0.91
	3/8″	14	0.55	7	0.28	36	1.42	23	0.91
3/4″	1/8″	14	0.55	7	0.28	34	1.34	29	1.14
	1/4″	14	0.55	7	0.28	35	1.38	29	1.14
	3/8″	14	0.55	7	0.28	36	1.42	29	1.14
	1/2″	14	0.55	7	0.28	39	1.54	29	1.14
1″	1/4″	17.5	0.69	9	0.35	41	1.61	35	1.38
	3/8″	17.5	0.69	9	0.35	42	1.65	35	1.38
	1/2″	17.5	0.69	9	0.35	45	1.77	35	1.38
	3/4″	17.5	0.69	9	0.35	45	1.77	35	1.38
1-1/4″	1/4″	18	0.71	10	0.39	42	1.65	45	1.77
	3/8″	18	0.71	10	0.39	43	1.69	45	1.77
	1/2″	18	0.71	10	0.39	46	1.81	45	1.77
	3/4″	18	0.71	10	0.39	46	1.81	45	1.77
	1″	18	0.71	10	0.39	50	1.97	45	1.77
1-1/2″	1/4″	18.5	0.73	10.5	0.41	42.5	1.67	50	1.97
	3/8″	18.5	0.73	10.5	0.41	43.5	1.71	50	1.97
	1/2″	18.5	0.73	10.5	0.41	46.5	1.83	50	1.97
	3/4″	18.5	0.73	10.5	0.41	46.5	1.83	50	1.97
	1″	18.5	0.73	10.5	0.41	50.5	1.99	50	1.97
	1-1/4″	18.5	0.73	10.5	0.41	50.5	1.99	50	1.97
2″	3/8″	20	0.79	11	0.43	45	1.77	62	2.44
	1/2″	20	0.79	11	0.43	48	1.89	62	2.44
	3/4″	20	0.79	11	0.43	48	1.89	62	2.44
	1″	20	0.79	11	0.43	52	2.05	62	2.44
	1-1/4″	20	0.79	11	0.43	52	2.05	62	2.44
	1-1/2″	20	0.79	11	0.43	52	2.05	62	2.44
2-1/2″	3/4″	22.5	0.89	13	0.51	52.5	2.07	78	3.07
	1″	22.5	0.89	13	0.51	56.5	2.22	78	3.07
	1-1/4″	22.5	0.89	13	0.51	56.5	2.22	78	3.07
	1-1/2″	22.5	0.89	13	0.51	56.5	2.22	78	3.07
	2″	22.5	0.89	13	0.51	57.5	2.26	78	3.07
3″	1-1/2″	25	0.98	15	0.59	61	2.4	91	3.58
	2″	25	0.98	15	0.59	62	2.44	91	3.58
	2-1/2″	25	0.98	15	0.59	64.5	2.54	91	3.58
4″	2″	27	1.06	15	0.59	64	2.52	117	4.61
	2-1/2″	27	1.06	15	0.59	66.5	2.62	117	4.61
	3″	27	1.06	15	0.59	69	2.72	117	4.61
Tolerance: +0.5mm(1/8″~2″)
+0.8mm(2-1/2″~4″)

High Nickel Alloy Swage Nipple - Threaded - Dimensions

ASME B16.11 Concentric Swage Nipple - Threaded - Dimensions

Dimensions of High Nickel Alloy Threaded Swage Nipple

Nominal Pipe Size (NPS)	Outside Diameter		End To End “A”	Wall Thickness
	Large End D1	Small End D2		T1				T2
	Large End D1	Small End D2		Sch40 (Sth)	Sch80 (XS)	Sch160	XXS	Sch40 (Sth)	Sch80 (XS)	Sch160	XXS
1/4”x1/8”	13.7	10.3	57	2.2	3.0	3.7	6.1	1.7	2.4
3/8”x1/8”	17.1	10.3	64	2.3	3.2	4.0	6.4	1.7	2.4
3/8”x1/4”	17.1	13.7	64	2.3	3.2	4.0	6.4	2.2	3.0
1/2”x1/8”	21.3	10.3	70	2.8	3.7	4.8	7.5	1.7	2.4
1/2”x1/4”	21.3	13.7	70	2.8	3.7	4.8	7.5	2.2	3.0
1/2”x3/8”	21.3	17.1	70	2.8	3.7	4.8	7.5	2.3	3.2
3/4”x1/8”	26.7	10.3	76	2.9	3.9	5.6	7.8	1.7	2.4
3/4’x1/4”	26.7	13.7	76	2.9	3.9	5.6	7.8	2.2	3.0
3/4”x3/8”	26.7	17.1	76	2.9	3.9	5.6	7.8	2.3	3.2
3/4”x1/2”	26.7	21.3	76	2.9	3.9	5.6	7.8	2.8	3.7	4.8	7.5
1”x1/8”	33.4	10.3	89	3.4	4.5	6.4	9.1	1.7	2.4
1”x1/4”	33.4	13.7	89	3.4	4.5	6.4	9.1	2.2	3.0
1”x3/8”	33.4	17.1	89	3.4	4.5	6.4	9.1	2.3	3.2
1”x1/2”	33.4	21.3	89	3.4	4.5	6.4	9.1	2.8	3.7	4.8	7.5
1”x3/4”	33.4	26.7	89	3.4	4.5	6.4	9.1	2.9	3.9	5.6	7.8
1-1/4”x1/8”	42.2	10.3	102	3.6	4.9	6.4	9.7	1.7	2.4
1-1/4”x1/4”	42.2	13.7	102	3.6	4.9	6.4	9.7	2.2	3.0
1-1/4”x3/8”	42.2	17.1	102	3.6	4.9	6.4	9.7	2.3	3.2
1-1/4”x1/2”	42.2	21.3	102	3.6	4.9	6.4	9.7	2.8	3.7	4.8	7.5
1-1/4”x3/4”	42.2	26.7	102	3.6	4.9	6.4	9.7	2.9	3.9	5.6	7.8
1-1/4”x1”	42.2	33.4	102	3.6	4.9	6.4	9.7	3.4	4.5	6.4	9.1
1-1/2”x1/8”	48.3	10.3	114	3.7	5.1	7.1	10.2	1.7	2.4
1-1/2”x1/4”	48.3	13.7	114	3.7	5.1	7.1	10.2	2.2	3.0
1-1/2”x3/8”	48.3	17.1	114	3.7	5.1	7.1	10.2	2.3	3.2
1-1/2”x1/2”	48.3	21.3	114	3.7	5.1	7.1	10.2	2.8	3.7	4.8	7.5
1-1/2”x3/4”	48.3	26.7	114	3.7	5.1	7.1	10.2	2.9	3.9	5.6	7.8
1-1/2”x1”	48.3	33.4	114	3.7	5.1	7.1	10.2	3.4	4.5	6.4	9.1
1-1/2”x1-1/4”	48.3	42.2	114	3.7	5.1	7.1	10.2	3.6	4.9	6.4	9.7
2”x1/8”	60.3	10.3	165	3.9	5.5	8.7	11.1	1.7	2.4
2”x1/4”	60.3	13.7	165	3.9	5.5	8.7	11.1	2.2	3.0
2”x3/8”	60.3	17.1	165	3.9	5.5	8.7	11.1	2.3	3.2
2”x1/2”	60.3	21.3	165	3.9	5.5	8.7	11.1	2.8	3.7	4.8	7.5

Nominal Pipe Size (NPS)	Outside Diameter		End To End “A”	Wall Thickness
	Large End D1	Small End D2		T1				T2
	Large End D1	Small End D2		Sch40 (Sth)	Sch80 (XS)	Sch160	XXS	Sch40 (Sth)	Sch80 (XS)	Sch160	XXS
2”x3/4”	60.3	26.7	165	3.9	5.5	8.7	11.1	2.9	3.9	5.6	7.8
2”x1”	60.3	33.4	165	3.9	5.5	8.7	11.1	3.4	4.5	6.4	9.1
2”x1-1/4”	60.3	42.2	165	3.9	5.5	8.7	11.1	3.6	4.9	6.4	9.7
2”x1-1/2”	60.3	48.3	165	3.9	5.5	8.7	11.1	3.7	5.1	7.1	10.2
2-1/2”x1/8”	73.0	10.3	178	5.2	7.0	9.5	14.0	1.7	2.4
2-1/2”x1/4”	73.0	13.7	178	5.2	7.0	9.5	14.0	2.2	3.0
2-1/2”x3/8”	73.0	17.1	178	5.2	7.0	9.5	14.0	2.3	3.2
2-1/2”x1/2”	73.0	21.3	178	5.2	7.0	9.5	14.0	2.8	3.7	4.8	7.5
2-1/2”x3/4”	73.0	26.7	178	5.2	7.0	9.5	14.0	2.9	3.9	5.6	7.8
2-1/2”x1”	73.0	33.4	178	5.2	7.0	9.5	14.0	3.4	4.5	6.4	9.1
2-1/2”x1-1/4”	73.0	42.2	178	5.2	7.0	9.5	14.0	3.6	4.9	6.4	9.7
2-1/2”x1-1/2”	73.0	48.3	178	5.2	7.0	9.5	14.0	3.7	5.1	7.1	10.2
2-1/2”x2”	73.0	60.3	178	5.2	7.0	9.5	14.0	3.9	5.5	8.7	11.1
3”x1/8”	88.9	10.3	203	5.5	7.6	11.1	15.2	1.7	2.4	3.2	4.8
3”x1/4”	88.9	13.7	203	5.5	7.6	11.1	15.2	2.2	3.0	3.7	6.1
3”x3/8”	88.9	17.1	203	5.5	7.6	11.1	15.2	2.3	3.2	4.0	6.4
3”x1/2”	88.9	21.3	203	5.5	7.6	11.1	15.2	2.8	3.7	4.8	7.5
3”x3/4”	88.9	26.7	203	5.5	7.6	11.1	15.2	2.9	3.9	5.6	7.8
3”x1”	88.9	33.4	203	5.5	7.6	11.1	15.2	3.4	4.5	6.4	9.1
3”x1-1/4”	88.9	42.2	203	5.5	7.6	11.1	15.2	3.6	4.9	6.4	9.7
3”x1-1/2”	88.9	48.3	203	5.5	7.6	11.1	15.2	3.7	5.1	7.1	10.2
3”x2”	88.9	60.3	203	5.5	7.6	11.1	15.2	3.9	5.5	8.7	11.1
3”x2-1/2”	88.9	73.0	203	5.5	7.6	11.1	15.2	5.2	7.0	9.5	14.0
3-1/2”x1/8”	101.6	10.3	203	5.7	8.1			1.7	2.4
3-1/2”x1/4”	101.6	13.7	203	5.7	8.1			2.2	3.0
3-1/2”x3/8”	101.6	17.1	203	5.7	8.1			2.3	3.2
3-1/2”x1/2”	101.6	21.3	203	5.7	8.1			2.8	3.7	4.8	7.5
3-1/2”x3/4”	101.6	26.7	203	5.7	8.1			2.9	3.9	5.6	7.8
3-1/2”x1”	101.6	33.4	203	5.7	8.1			3.4	4.5	6.4	9.1
3-1/2”x1-1/4”	101.6	42.2	203	5.7	8.1			3.6	4.9	6.4	9.7

Monel Swage Nipple Applications

Oil and Gas

Nuclear Power & Defence

Petrochemical

LNG

Desalination

Mining & Minerals

List of countries we export & supplies our products

Myanmar, Nepal, Thailand, Vietnam, Philippines, Malaysia, Indonesia,

Singapore, Taiwan, Tasmania, Sri Lanka, Bangladesh, Bhutan, Cambodia,

Australia, New Zealand, Afghanistan, Tajikistan, Kyrgyzstan, Kazakhstan,

Uzbekistan, Turkmenistan, Iran, United Arab Emirates(UAE), Saudi Arabia,

Oman, Yemen, Iraq, Azerbaijan, Turkiye, Syria, Lebanon, Israel, Kenya,

Egypt, South Sudan, Eritrea, Djibouti, Ethiopia, Libya, Rwanda, Mali,

Niger, Chad, Central Africa Republic, Nigeria, Cameroon, Somalia, DRC,

Uganda, Tanzania, Angola, Zambia, Madagascar, Malawi, Namibia, Benin,

Zimbabwe, Botswana, Lesotho, South Africa, Algeria, Tunisia, Morocco,

Eswatini, Liberia, Sierra Leone, The Gambia, Senegal, Mozambique, Togo,

Mauritania, Burkina Faso, Ghana, Equatorial Guinea, Jordan, Timor-Leste,

Palestine, Laos, Armenia, Georgia, Maldives, Cyprus, Kuwait, Qatar, Peru,

Bahrain, Brunei, Finland, France, Germany, Ireland, Iceland, UK, US,

Greece, Hungary, Italy, Norway, Poland, Slovakia, Sweden, Canada, Fiji,

Romania, Cuba, Panama, Brazil, Colombia, Chile, Argentina, Venezuela,

Reload this page

List of cities we supply our products

Naypyidaw, Kathmandu, Bangkok, Hanoi, Manila, Kuala Lumpur, Jakarta, Tunis,

Jurong East, Taipei City, Hobart, Sri Jayawardenepura Kotte, Dhaka, Thimphu,

Phnom Penh, Canberra, Wellington, Kabul, Dushanbe, Bishkek, Astana, Abuja,

Tashkent, Ashgabat, Tehran, Abu Dhabi, Riyadh, Muscat, Sana’a, Baghdad, Pretoria,

Baku, Ankara, Damascus, Beirut, Jerusalem, Nairobi, Cairo, Juba, Asmara, Rabat,

Djibouti city, Addis Ababa, Tripoli, Kigali, Bamako, Niamey, N’Djamena, Bangui,

Yaoundé, Mogadishu, Kinshasa, Kampala, Dodoma, Luanda, Lusaka, Antananarivo,

Lilongwe, Windhoek, Porto-Novo, Harare, Gaborone, Maseru, Cape Town, Bloemfontein,

Algiers, Mbabane, Lobamba, Monrovia, Freetown, Banjul, Dakar, Maputo, Lomé, Dili,

Nouakchott, Ouagadougou, Accra, Malabo, Amman, Vientiane, Yerevan, Tbilisi, Rome,

Malé, Nicosia, Kuwait City, Doha, Lima, Manama, Bandar Seri Begawan, Paris,

Helsinki, Berlin, Dublin, Reykjavík, London, Washington D.C., Athens, Budapest,

Oslo, Warsaw, Bratislava, Stockholm, Ottawa, Suva, Bucharest, Havana, Panama City,

Brasília, Bogotá, Santiago, Buenos Aires, Caracas, Mumabi, Chennai, Bengaluru,

Kolkata, Hyderabad, Pune, Ahmedabad, Jaipur, Surat, Visakhapatnam, Indore, New Delhi

Lucknow, Nagpur, Kochi, Kanpur, Guwahati, Coimbatore, Noida, Ghaziabad, Patna

High Nickel Alloy Nipples
