Carbon Steel ASTM A234 WPB Cross Manufacturers and Suppliers:

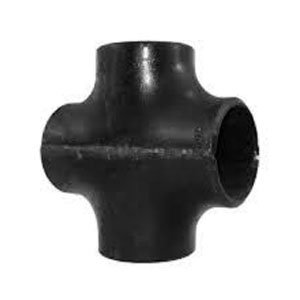

A carbon steel cross is a type of pipe fitting used in plumbing and piping systems. It is made of carbon steel, which is a durable and strong material that is suitable for use in high-pressure and high-temperature applications.
The cross-shaped fitting has four outlets, with one inlet and three outlets arranged perpendicular to each other. It is used to connect four pipes of equal or different diameters at a cross point, allowing the flow of fluid or gas to be redirected in multiple directions.
ISO Approved Carbon Steel Equal Cross Manufacturer In India, ASTM A234 WPB Straight Cross, A420 WPL6 Unequal Cross, A860 WPHY 52 Cross, A860 WPHY 42 Reducing Cross Dimensions Chart, Tolerances, Weight Chart
Carbon steel crosses are commonly used in industrial and commercial applications, such as in the oil and gas, chemical, and power generation industries. Carbon steel crosses are available in various sizes and pressure ratings, and can be customized to fit specific piping requirements. Proper installation and maintenance of carbon steel crosses are important to ensure safe and efficient operation of the piping system.
We have the ready inventory of Carbon Steel Cross in the different size ranges of 1 Inch, 2 Inch, 3 Inch CS Equal/Unequal Crosses.
Carbon Steel Cross Standard Specifications
Standards
ASTM A234/ ASME SA234, ASTM A420/ ASME SA420 WPL6, ASTM A860/ ASME SA860, ANSI / ASME B16.9, MSS SP-43, API 590-605
Thickness
SCH10, SCH 20, SCH30, STD SCH40, SCH80, SCH60, XS, SCH100, SCH 120, SCH140, SCH 160, XXS available with NACE MR 01-75
Types
Welded | Seamless | Fabricated
Dimensions
ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10
Size Range (inches)
Seamless Cross ( 1/2″～10″)
ERW/Fabricated/Welded Cross (1/2″～48″)
Forms
Equal Cross, Straight Cross & Unequal Cross, Reducing Cross
Carbon Steel Unequal Cross, A860 WPHY 46 Reducing Cross, CS A860 WPHY 65 Equal Cross, A860 WPHY 60 Cross, A860 WPHY 70 Straight Cross Get best Price List.
Carbon Steel Cross Dimensions and Weights Chart
Carbon Steel Equal Cross Dimensions
Dimensions and weights of Carbon Steel Equal Cross (NPS 1/2 to 24, schedule STD/XS)
| Nominal Pipe Size (NPS) | DN | Outside Diameter at Bevel | Center- to-End | |
|---|---|---|---|---|
| Run.C | Outlet. M[Notes(1) and (2)] | |||
| 1/2 | 15 | 21.3 | 25 | 25 |
| 3/4 | 20 | 26.7 | 29 | 29 |
| 1 | 25 | 33.4 | 38 | 38 |
| 1-1/4 | 32 | 42.2 | 48 | 48 |
| 1-1/2 | 40 | 48.3 | 57 | 57 |
| 2 | 50 | 60.3 | 64 | 64 |
| 2-1/2 | 65 | 73.0 | 76 | 76 |
| 3 | 80 | 88.9 | 86 | 86 |
| 3-1/2 | 90 | 101.6 | 95 | 95 |
| 4 | 100 | 114.3 | 105 | 105 |
| 5 | 125 | 141.3 | 124 | 124 |
| 6 | 150 | 168.3 | 143 | 143 |
| 8 | 200 | 219.1 | 178 | 178 |
| 10 | 250 | 273.0 | 216 | 216 |
| 12 | 300 | 323.8 | 254 | 254 |
| 14 | 350 | 355.6 | 279 | 279 |
| 16 | 400 | 406.4 | 305 | 305 |
| 18 | 450 | 457 | 343 | 343 |
| 20 | 500 | 508 | 381 | 381 |
| 22 | 550 | 559 | 419 | 419 |
| 24 | 600 | 610 | 432 | 432 |
| 26 | 650 | 660 | 495 | 495 |
| 28 | 700 | 711 | 521 | 521 |
| 30 | 750 | 762 | 559 | 559 |
| 32 | 800 | 813 | 597 | 597 |
| 34 | 850 | 864 | 635 | 635 |
| 36 | 900 | 914 | 673 | 673 |
| 38 | 950 | 965 | 711 | 711 |
| 40 | 1000 | 1016 | 749 | 749 |
| 42 | 1050 | 1067 | 762 | 711 |
| 44 | 1100 | 1118 | 813 | 762 |
| 46 | 1150 | 1168 | 851 | 800 |
| 48 | 1200 | 1219 | 889 | 838 |
Carbon Steel Reducing Cross Dimensions
Dimensions and weights of Carbon Steel Reducing Cross (NPS 1/2 to 24, schedule STD/XS)
| Nominal Diameter | Outside Diameter | Center to End | |||||
|---|---|---|---|---|---|---|---|
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15×15 | 1/2×1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15×10 | 1/2×3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15×8 | 1/2×1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20×20 | 3/4×3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20×15 | 3/4×1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20×10 | 3/4×3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
| 25×25 | 1×1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25×20 | 1×3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25×15 | 1×1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32×32 | 1.1/4×1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32×25 | 1.1/4×1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32×20 | 1.1/4×3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
| 32×15 | 1.1/4×1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
| 40×40 | 1.1/2×1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
| 40×32 | 1.1/2×1.1/4 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
| 40×25 | 1.1/2×1 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
| 40×20 | 1.1/2×3/4 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
| 40×15 | 1.1/2×1/2 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
| 50×50 | 2×2 | 60.3 | 57 | 60.3 | 57 | 64 | 64 |
| 50×40 | 2×1.1/2 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
| 50×32 | 2×1.1/4 | 60.3 | 57 | 42.4 | 38 | 64 | 57 |
| 50×25 | 2×1 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
| 50×20 | 2×3/4 | 60.3 | 57 | 26.9 | 25 | 64 | 44 |
| 65×65 | 2/1/2×2.1/2 | 73.0 | 76 | 73.0 | 76 | 76 | 76 |
| 65×50 | 2/1/2×2 | 73.0 | 76 | 60.3 | 57 | 76 | 70 |
| 65×40 | 2/1/2×1.1/2 | 73.0 | 76 | 48.3 | 45 | 76 | 67 |
| 65×32 | 2/1/2×1.1/4 | 73.0 | 76 | 42.4 | 38 | 76 | 64 |
| 65×25 | 2/1/2×1 | 73.0 | 76 | 33.7 | 32 | 76 | 57 |
| 80×80 | 3×3 | 88.9 | 89 | 88.9 | 89 | 86 | 86 |
| 80×65 | 3×2.1/2 | 88.9 | 89 | 73.0 | 76 | 86 | 83 |
| 80×50 | 3×2 | 88.9 | 89 | 60.3 | 57 | 86 | 76 |
| 80×40 | 3×1.1/2 | 88.9 | 89 | 48.3 | 45 | 86 | 73 |
| 80×32 | 3×1.1/4 | 88.9 | 89 | 42.4 | 38 | 86 | 70 |
| 90×90 | 3.1/2×3.1/2 | 101.6 | – | 101.6 | – | 95 | 95 |
| 90×80 | 3.1/2×3 | 101.6 | – | 88.9 | 89 | 95 | 92 |
| 90×65 | 3.1/2×2.1/2 | 101.6 | – | 73.0 | 76 | 95 | 89 |
| 90×50 | 3.1/2×2 | 101.6 | – | 60.3 | 57 | 95 | 83 |
| 90×40 | 3.1/2×1.1/2 | 101.6 | – | 48.3 | 45 | 95 | 79 |
| 100×100 | 4×4 | 114.3 | 108 | 114.3 | 108 | 105 | 105 |
| 100×90 | 4×3.1/2 | 114.3 | 108 | 101.6 | – | 105 | 102 |
| 100×80 | 4×3 | 114.3 | 108 | 88.9 | 89 | 105 | 98 |
| 100×65 | 4×2.1/2 | 114.3 | 108 | 73.0 | 76 | 105 | 95 |
| 100×50 | 4×2 | 114.3 | 108 | 60.3 | 57 | 105 | 89 |
| 100×40 | 4×1.1/2 | 114.3 | 108 | 48.3 | 45 | 105 | 86 |
| 125×125 | 5×5 | 141.3 | 133 | 141.3 | 133 | 124 | 124 |
| 125×100 | 5×4 | 141.3 | 133 | 114.3 | 108 | 124 | 117 |
| 125×90 | 5×3.1/2 | 141.3 | – | 101.6 | – | 124 | 114 |
| 125×80 | 5×3 | 141.3 | 133 | 88.9 | 89 | 124 | 111 |
| 125×65 | 5×2.1.2 | 141.3 | 133 | 73.0 | 76 | 124 | 108 |
| 125×50 | 5×2 | 141.3 | 133 | 60.3 | 57 | 124 | 105 |
| 150×150 | 6×6 | 168.3 | 159 | 168.3 | 159 | 143 | 143 |
| 150×125 | 6×5 | 168.3 | 159 | 141.3 | 133 | 143 | 137 |
| 150×100 | 6×4 | 168.3 | 159 | 114.3 | 108 | 143 | 130 |
| 150×90 | 6×3.1/2 | 168.3 | – | 101.6 | – | 143 | 127 |
| 150×80 | 6×3 | 168.3 | 159 | 88.9 | 89 | 143 | 124 |
| 150×65 | 6×2.1/2 | 168.3 | 159 | 73.0 | 76 | 143 | 121 |
| 200×200 | 8×8 | 219.1 | 219 | 219.1 | 219 | 178 | 178 |
| 200×150 | 8×6 | 219.1 | 219 | 168.3 | 159 | 178 | 168 |
| 200×125 | 8×5 | 219.1 | 219 | 141.4 | 133 | 178 | 162 |
| 200×100 | 8×4 | 219.1 | 219 | 114.3 | 108 | 178 | 156 |
| 200×90 | 8×3.1/2 | 219.1 | – | 101.6 | – | 178 | 152 |
| 250×250 | 10×10 | 273.0 | 273 | 273.0 | 273 | 216 | 216 |
| 250×200 | 10×8 | 273.0 | 273 | 219.1 | 219 | 216 | 203 |
| 250×150 | 10×6 | 273.0 | 273 | 168.3 | 159 | 216 | 194 |
| 250×125 | 10×5 | 273.0 | 273 | 141.3 | 133 | 216 | 191 |
| 250×100 | 10×4 | 273.0 | 273 | 114.3 | 108 | 216 | 184 |
| 300×300 | 12×12 | 323.9 | 325 | 323.9 | 325 | 254 | 254 |
| 300×250 | 12×10 | 323.9 | 325 | 273.0 | 273 | 254 | 241 |
| 300×200 | 12×8 | 323.9 | 325 | 219.1 | 219 | 254 | 229 |
| 300×150 | 12×6 | 323.9 | 325 | 168.3 | 159 | 254 | 219 |
| 300×125 | 12×5 | 323.9 | 325 | 141.3 | 133 | 254 | 216 |
| 350×350 | 14×14 | 355.6 | 377 | 355.6 | 377 | 279 | 279 |
| 350×300 | 14×12 | 355.6 | 377 | 323.9 | 325 | 279 | 270 |
| 350×250 | 14×10 | 355.6 | 377 | 273.0 | 273 | 279 | 257 |
| 350×200 | 14×8 | 355.6 | 377 | 219.1 | 219 | 279 | 248 |
| 350×150 | 14×6 | 355.6 | 377 | 168.3 | 159 | 279 | 238 |
| 400×400 | 16×16 | 406.4 | 426 | 406.4 | 426 | 305 | 305 |
| 400×350 | 16×14 | 406.4 | 426 | 355.6 | 377 | 305 | 305 |
| 400×300 | 16×12 | 406.4 | 426 | 323.9 | 325 | 305 | 295 |
| 400×250 | 16×10 | 406.4 | 426 | 273.0 | 273 | 305 | 283 |
| 400×200 | 16×8 | 406.4 | 426 | 219.1 | 219 | 305 | 273 |
| 400×150 | 16×6 | 406.4 | 426 | 168.3 | 159 | 305 | 264 |
| 450×450 | 18×18 | 457 | 480 | 457 | 480 | 343 | 343 |
| 450×400 | 18×16 | 457 | 480 | 406.4 | 426 | 343 | 330 |
| 450×350 | 18×14 | 457 | 480 | 355.6 | 377 | 343 | 330 |
| 450×300 | 18×12 | 457 | 480 | 323.9 | 325 | 343 | 321 |
| 450×250 | 18×10 | 457 | 480 | 273.0 | 273 | 343 | 308 |
| 450×200 | 18×8 | 457 | 480 | 219.1 | 219 | 343 | 298 |
| 500×500 | 20×20 | 508 | 530 | 508 | 530 | 381 | 381 |
| 500×450 | 20×20 | 508 | 530 | 457 | 480 | 381 | 368 |
| 500×400 | 20×20 | 508 | 530 | 406.4 | 426 | 381 | 356 |
| 500×350 | 20×20 | 508 | 530 | 355.6 | 377 | 381 | 356 |
| 500×300 | 20×20 | 508 | 530 | 323.9 | 325 | 381 | 346 |
| 500×250 | 20×20 | 508 | 530 | 273.0 | 273 | 381 | 333 |
| 500×200 | 20×20 | 508 | 530 | 219.1 | 219 | 381 | 324 |
